AGP4100 Compact Operator Interface

The Pro-face AGP4100 Series compact operator interface offers a crisp, clear and bright, 200 x 80 pixel monochrome LCD Display, with Analog Touch Panel for improved visibility and precise part placement. It comes equipped with energy efficient, maintenance free Green/Orange/Red or White/Pink/Red LED backlights.

2 USB ports (one for project transfer, and one for barcode reader connectivity), plus one Serial Port (RS232C, RS422/485 or RS485 MPI) make this series a powerful text panel replacement.

General Specifications:
Display Size: 3.4”
Screen Type: Monochrome LCD with Green/Orange/Red or
White/Pin/Red LED backlight
Analog Resistive Touch Screen
Global Certifications: RoHS, UL Listed* / CSA*, CE
2 Year Standard warranty
Programs with free GP-Pro EX Limited Edition

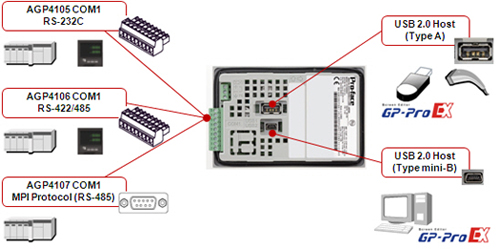

Available Ports:
Serial Port AGP4105: RS-232C, 9pin Terminal Block
Serial Port AGP4106: RS-422/485, 9pin Terminal Block
Serial Port AGP4107: RS-485 Isolated (Siemens MPI Only), 9pin DSub
USB Ports: One USB 2,0 Type A host, and one USB 2.0 Type mini-B host

Environmental:
Operating Temperature: 0 to 50 degrees C
Ratings: NEMA 4x/13, IP65f
Humidity: 10-90% RH non-condensing

General Specifications:
Display Size: 3.4”
Screen Type: Monochrome LCD with Green/Orange/Red or
White/Pin/Red LED backlight
Analog Resistive Touch Screen
Global Certifications: RoHS, UL Listed* / CSA*, CE
2 Year Standard warranty
Programs with free GP-Pro EX Limited Edition
