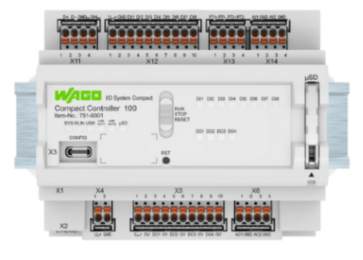

WAGO Compact
Controller 100
Taking a PLC and connecting it with the 750 Series I/O couplers, provides the flexibility and high-performance needed for applications large and small. Carefully engineered for machine builders, plant floor tasks and other digitalization projects, the Compact Controller 100 is easy to use and maintenance free.
With the Compact Controller 100, you get the benefit of both a compact controller, digital as well as analog inputs and outputs all-in-one! With CODESYS version 3 software, the industry's leading platform, this system combines advanced programming with capabilities of professional software development for modern control applications.
Benefits of the Compact Controller 100

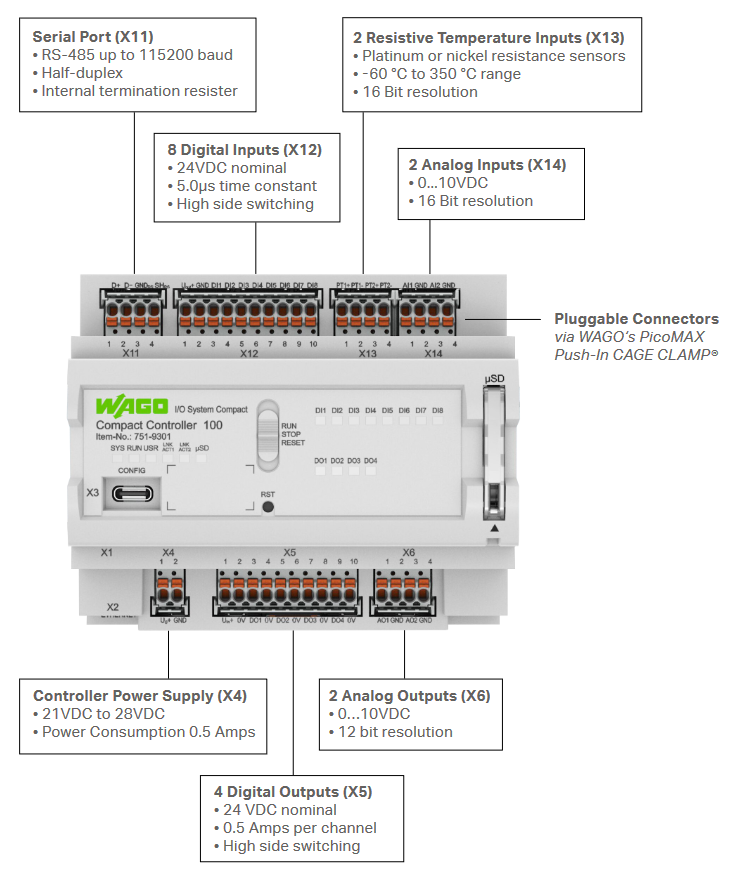

- Input: 8 Digital, 2 Analog, 2 RTD, Outputs: 4 Digital, 2 Analog
- Two configurable RJ45 ports with MicroSD card slots
- Pluggable connectors via WAGO's PicoMAX Push-in CAGE CLAMP®
- Expand the number and type of I/O using our 750 series couplers
- Industrial protocols supported
- Pair with 787-2850 Power Supply for compact footprint

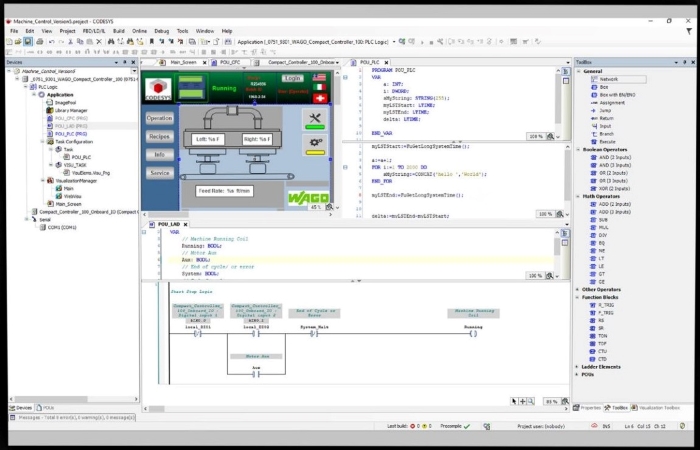

The Compact Controller 100 is programmed using market leading CODESYS V3.5 development software to help
reduce development time and costs. Engineers are able to use the most appropriate programming languages for
their applications. In addition, the same software is used to create web visualizations that can be used by equipment
operators and maintenance staff to interface with machines.
Professional engineering software for IEC 61131-3 compliant projects
• CODESYS V3.5 Programming software
• Use the language of your choice, or any combination-
Ladder Diagram, Sequential Function Chart, Function Block Diagram,
Continuous Function Chart, Structured Text
Build your own operator interfaces via HTML5 Web Visualizations
• Develop user interfaces via a web browser
• One software for logic and screen development, with common data tags
Expand your options via a Linux based real-time operating system
• Docker applications in parallel with IEC61131
• Add data handling apps like Node Red
