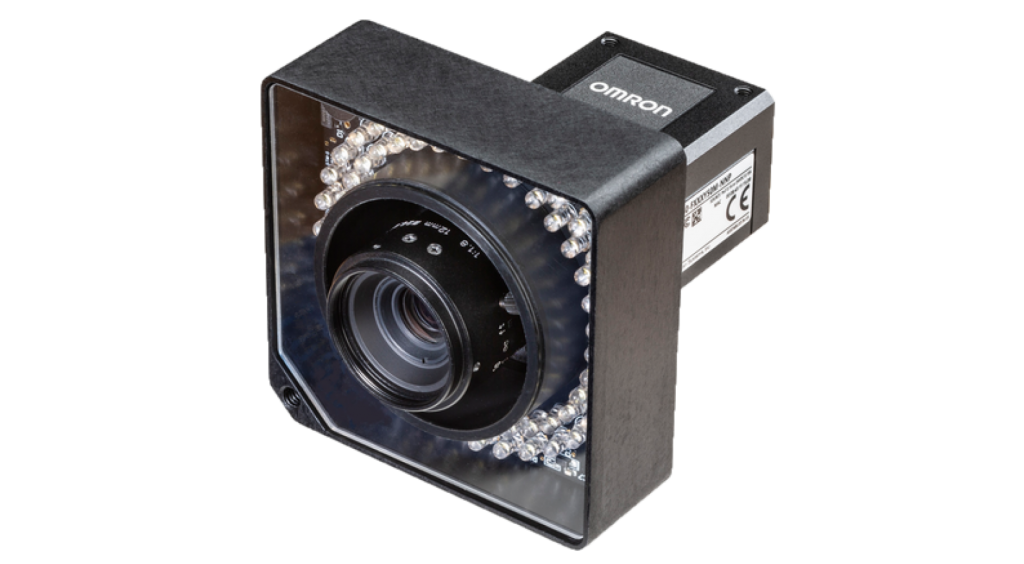

Omron V440-F High Resolution C-Mount Code Reader

The V440-F C-mount code reader's flexible optics ensure maximum positioning for the most challenging symbols, and direct part marks using high-performance algorithms. A high power dual-core processor, advanced functionality and the ability to read up to 400 codes in a single field, enable this multi code reader to be ideal for wide area, long distance or small code reading applications.

Overview

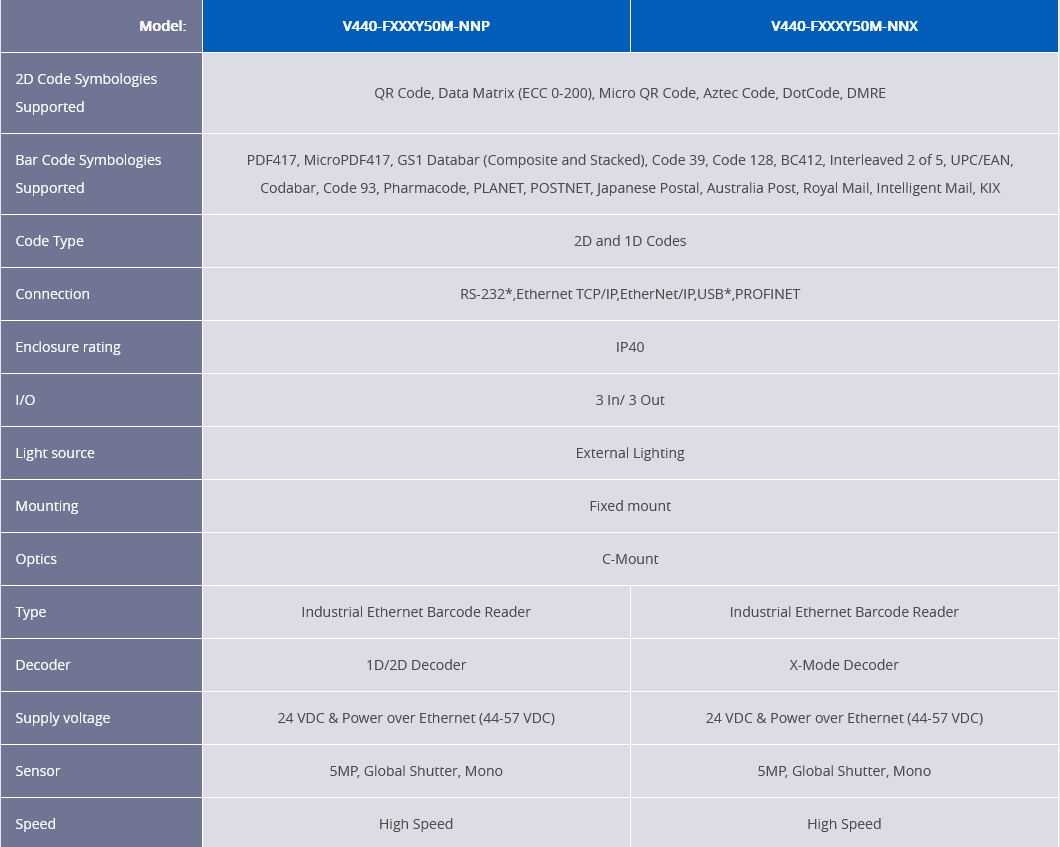

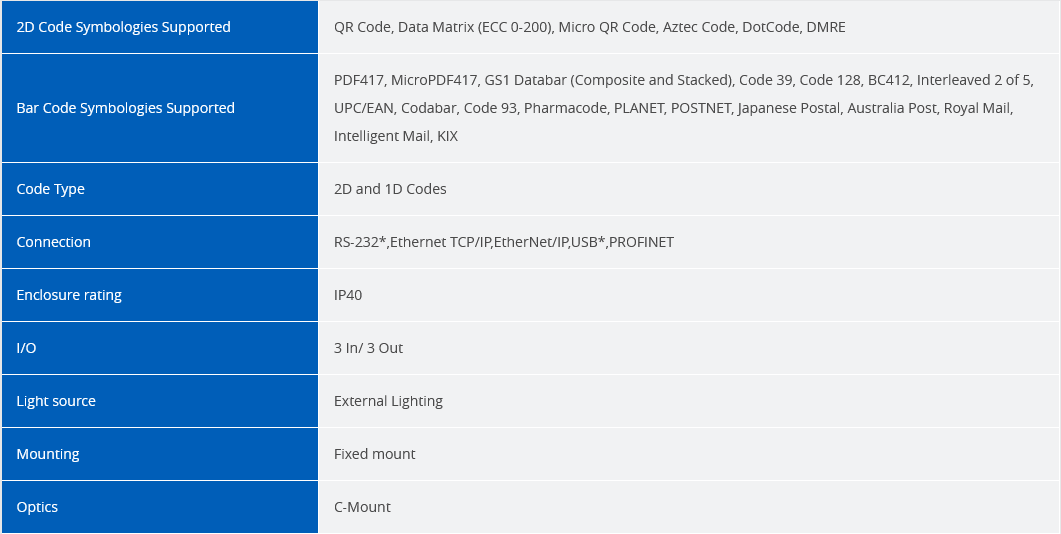

Specifications
Resources
- 5 MP global shutter sensor
- C-Mount lens compatible
- Dual-core processor
- High-speed, 36 FPS image acquisition
- Weblink 3.0 with enhanced functionality, including Matrix Mode and new Configuration Database
- Available with standard “P-Mode” or advanced “X-Mode” decode algorithms
- Designed for use with NERLITE Smart Series ring lights
- Power over Ethernet (PoE) or direct 24VDC
- Opto-isolated digital I/O
- Gigabit Ethernet with Locking RJ45 port for use with industrial Cables or Standard low-cost cabling
- RS232C, Ethernet, EtherNet/IP and PROFINET communications
- IP40 rating
- Available with standard “P-Mode” or advanced “X-Mode” decode algorithms



OMRON V440 Brochure
OMRON V440 Datasheet
OMRON V440 User Manual
OMRON V440 Communication Manual
OMRON V440 Brochurel
OMRON V440 Traceabilty Brochure
OMRON V440 Product Guide
OMRON V440 Selection Guide
